X29 Wall Fixture

To help assemble the S Scale America X29 kit



Any time I get to make something with

my Big Green Machine is a good day!



Milling_Machine_1



IMG_6925

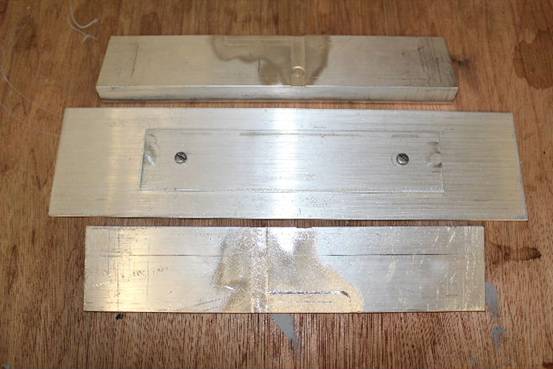

The plate screwed to the center of the base is the exact size as the X29 floor in the kit.



IMG_6926

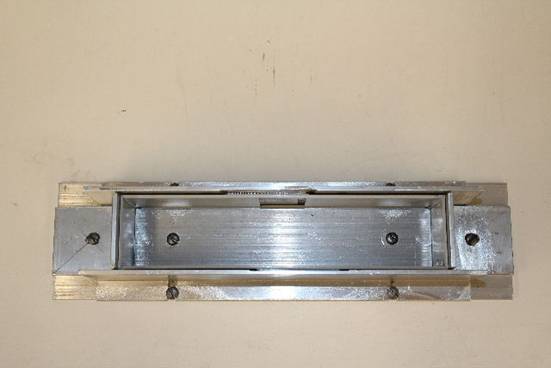

Drop in the X29 ends and walls. Start sliding in the fixture walls and ends and tightening the screws until the corners are perfectly formed.





IMG_6927



IMG_6929

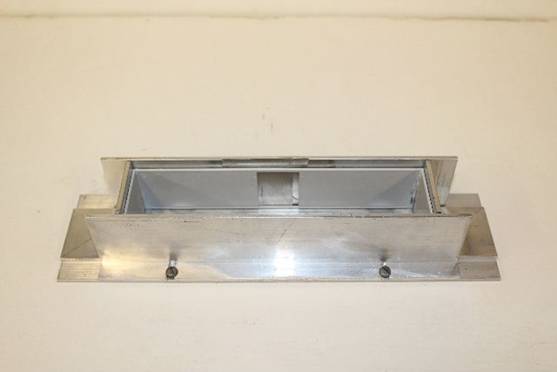

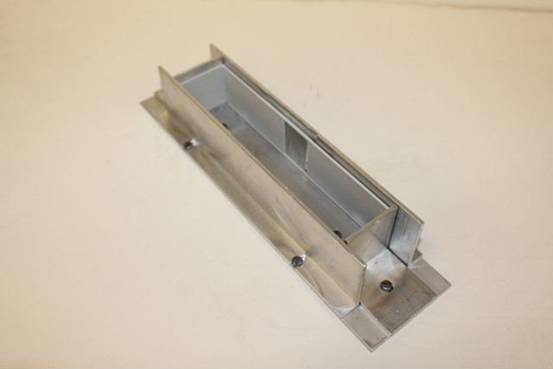

Run some 10X7R glue and maybe some Green Zap A Gap in the inside corners. Let the car sit for about 3 minutes.



Pop it out with perfect corners!





IMG_6931

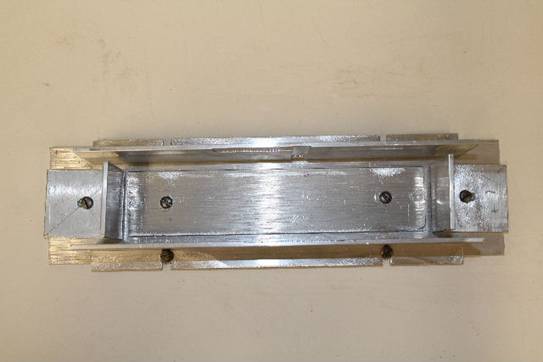

This is the fixture after the walls are removed.
