Click on the photos to make them larger



I finally completed all of my Cabin Cars on 9-28-12!



Some of my N5 and N6 Cabin cars were completed in the early 1990s, before I became so detail oriented. Part of me wants to do these cars over. I was using mostly Floquil Grimy Black only for the weathering. I started using real glass for the windows from the N5c until now.



PRSL N5 227

PRSL N5 small

This PRSL N5 was the first Cabin Car that I ever painted in about 1991. It is right out of the box with no modifications. I was trying to simulate the white streaking under the lettering, as best as I could with the “Binks” airbrush I was using at that time.



Even though PRSL 227 was my first Cabin Car paint job

it might be up for a strip and redo at some point.

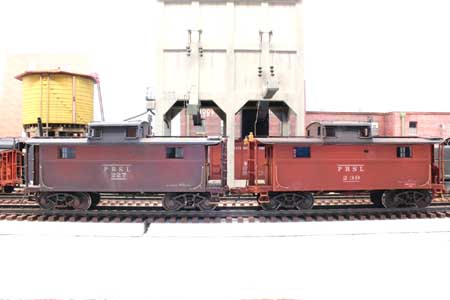

Compare the old and new below.

PRSL_N5_227_&_239 small



Added 7-27-12

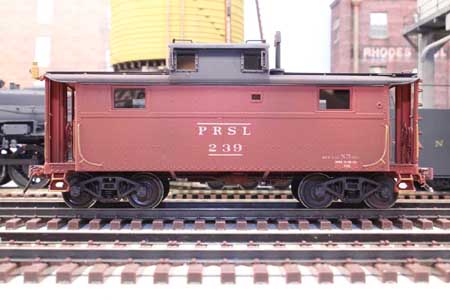

PRSL N5 239



PRSL_N5_239 small





Added 7-27-12

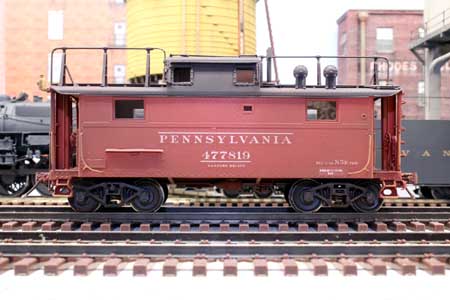

PRR N5b 477819

PRR_N5b_477819 small

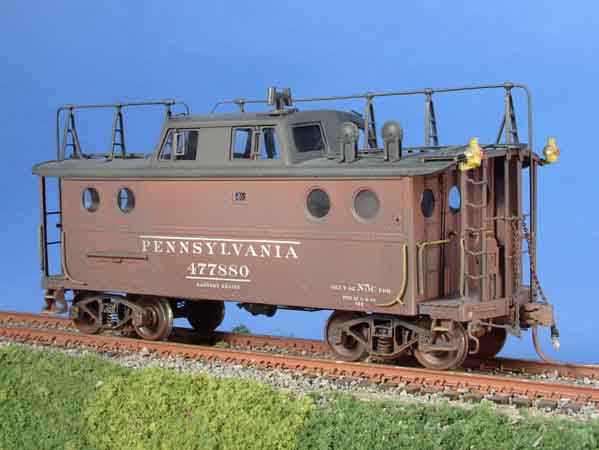

PRR N5c

477880

N5c 477880 small

By the time I painted these 2 N5c I was becoming more aware of details. I added marker lights, cut levers, and pull chains for the air hoses and cut levers. Making the small piece of flat bar for the cut lever chain was interesting. I made a small fixture to cut them to length and drill the holes.

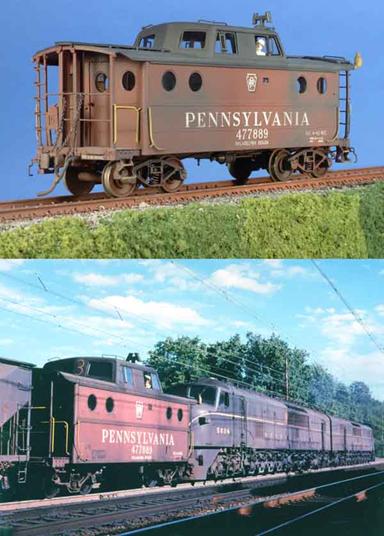

477789

PRR_N5c_477889 small

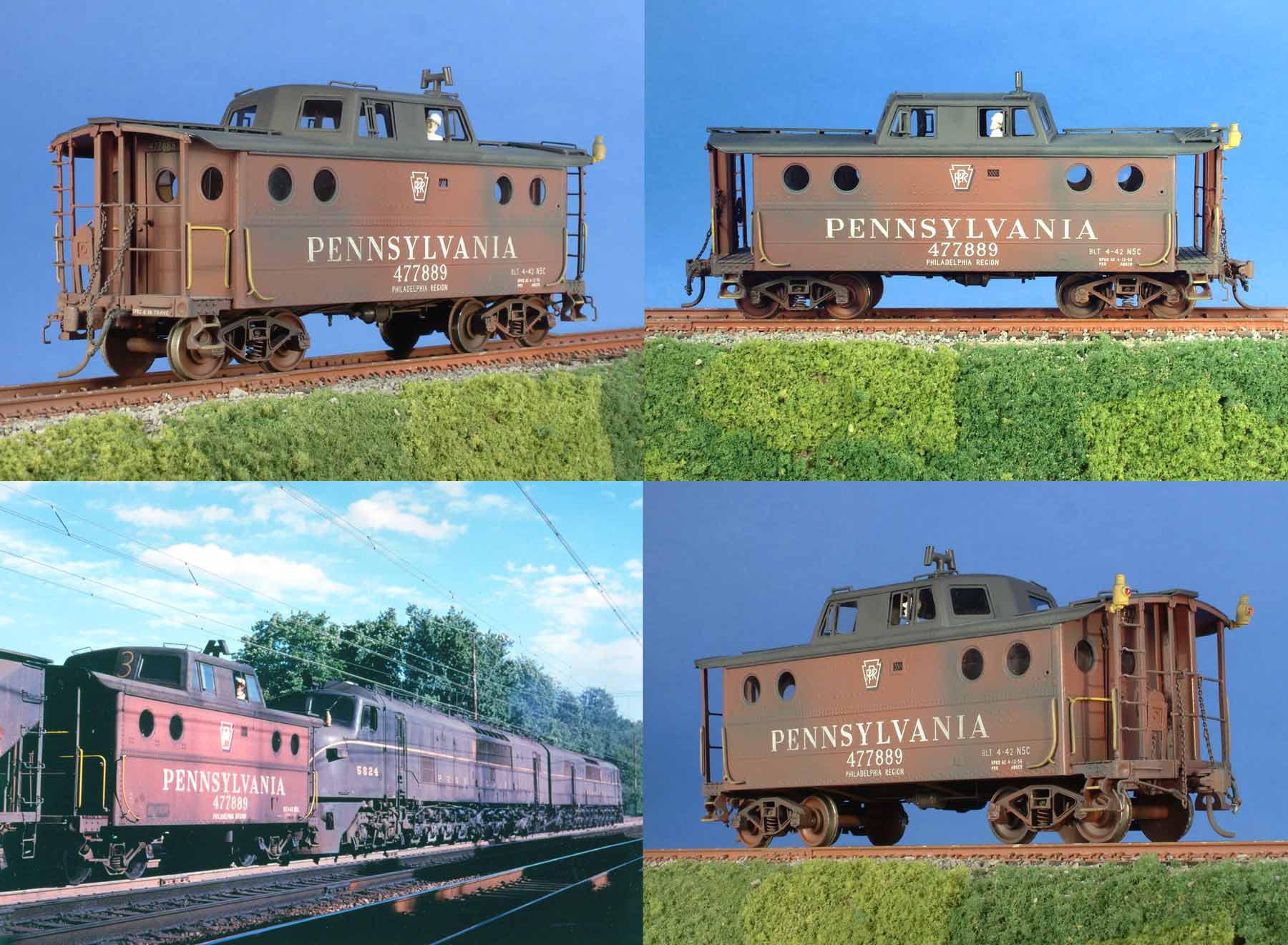

This N5c was modeled after a photo in Don Ball’s book “The Pennsylvania Railroad 1940 – 1950s.” The photo is on page 98 showing Centipedes pushing an ore train with this N5c on the rear. It was taken by Frank Tatnall. I was lucky enough to get a copy of that photo from the original slide from Frank. I added the same details as 477880 above, but I had to put the man in the cupola. I soldered a piece of angle on the inside wall. I cut a figure in half and screwed it to the angle looking out the window. I could not figure out how to put the “3” on the front of the cupola. What does it mean anyway? I consider these 2 models to be the turning point in the detail level of all of my future modeling.





PRR N6b

N6b small

I traded away the 2 Lines West N6a I had after I learned that they were all converted to N6b by my modeling period of 1956-57.



Added 7-27-12

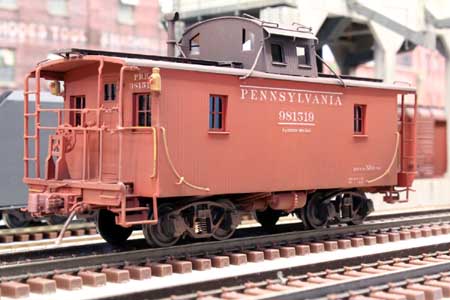

PRR N6b 981519

PRR_N6b_981519 small



Added 9-8-12

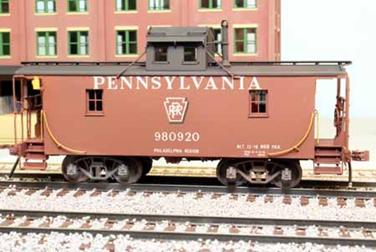

PRR N6b 980920

N6b_980920 small

This N6b was painted and decaled for many years before I finally finished it on 9-7-12





PRR N8



The N8 has slightly edged out the N5c as my favorite Cabin Car. As Pennsy’s last group of new Cabins, they were modern yet have the distinctive PRR style of previous classes.

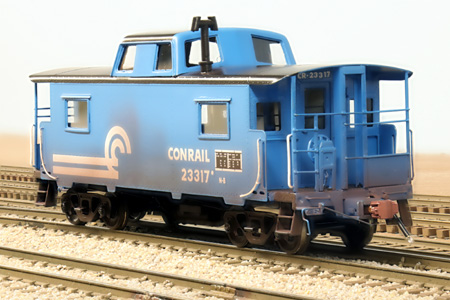

I am particularly proud of these N8 Cabin Cars. There are at least 30 hours of reworking and superdetailing to each of them. I made the master patterns for the draft gear and cut lever brackets from measurements I took from a real N8. I have the only S Scale N8 without antennas that are correct for the PRR.  Southwind Models imported 10 pieces without roofwalks for Penn Central and Conrail. I bought 3 of them. The ladders were also cut short. I put the roofwalks back ON and replaced the ladders. Other work included  adding marker lamps, air hose and cut lever chains, replacing Trainphone receivers, adding junctions boxes and conduit for the Trainphone receivers, Trust Plates, the generator drive belt and simulated the connection of the Trainphone system to the truck sideframes. I applied the silver trim around the windows with Microscale silver decal stock. Doing this to 2 cars was all that even I could stand!



I got all of my model car numbers to correctly correspond to the real N8 that did and did not have antennas. I learned after the Circle Keystone cars were completed that it is an equipment box for the Trainphone system, not a tool box, under the center of the car. All of the model cars were made with this box attached to the floor. I was very relieved when they did put up a fight when I snapped them off of the cars without antennas.

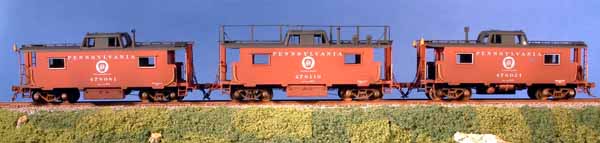

 Circle Keystone

PRR_N8_Circle_Keystone small

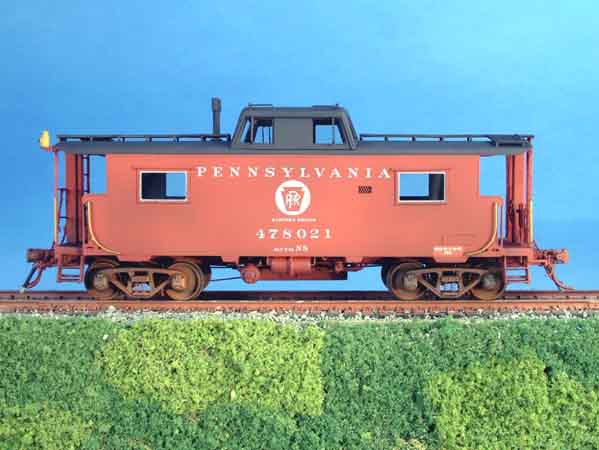

Car 478021

N8 478021 small

I made a new Smokestack for this car.

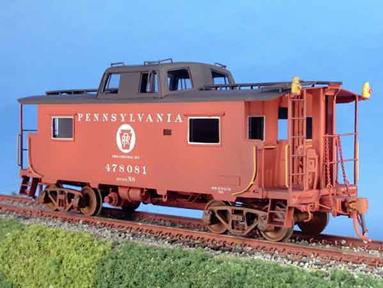

Car 478081

N8 478081 small

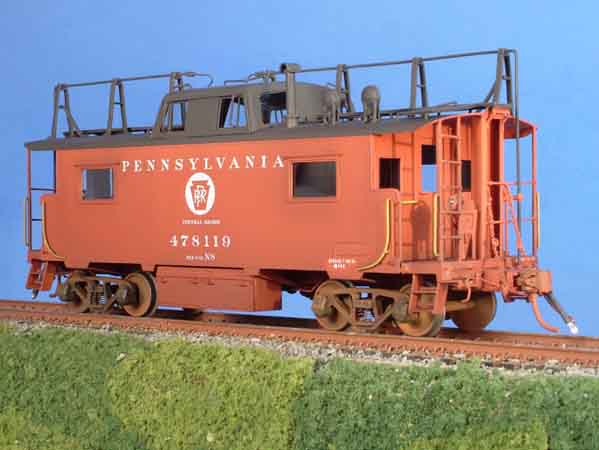

Car 478119

N8 478119 small





Shadow Keystone

PRR_N8_Shadow_Keystone small

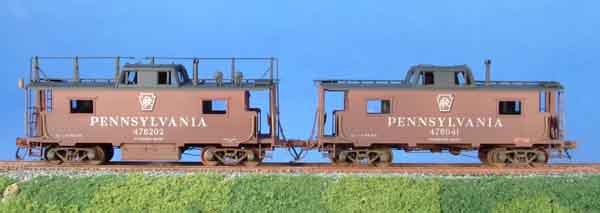

Car 478041

N8 478041 small

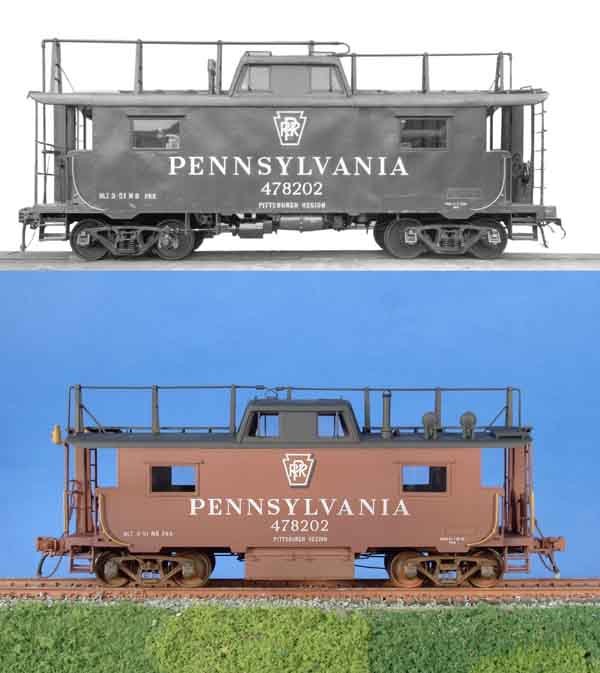

Car 478202

How could I not do car 478202 since I have the Builders photo? I just could not figure out how to make the generator and generator shaft drive and still run the model.

N8_478202 small

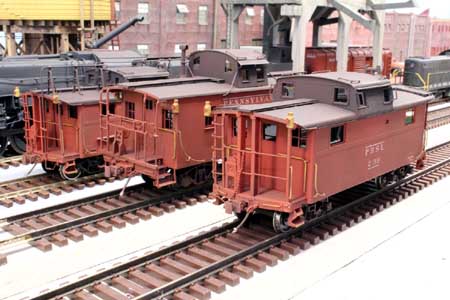

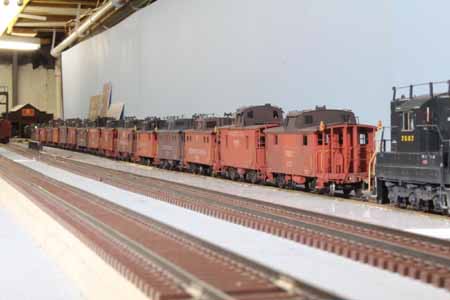

The Cabin Car track is getting full!

 End_Markers small Cabin_Track small

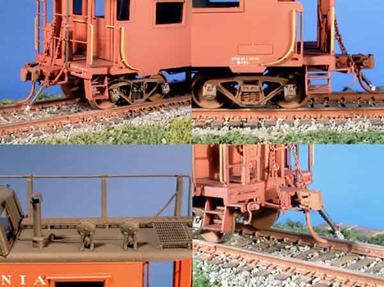

Details

It’s ALL about the details!

PRR__N8_Details small



Added 10-17-12

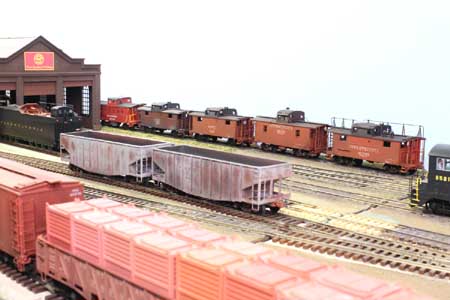

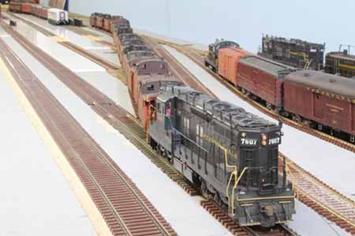

On October 2, I had a momentous occasion. I completed all of my Cabins Cars! This is the first rolling stock “category” that is done!

I also got both of my SD9 out to run for the first time on this layout.

 Cabin_Cars_Are_Done_1 small Cabin_Cars_Are_Done_2 small

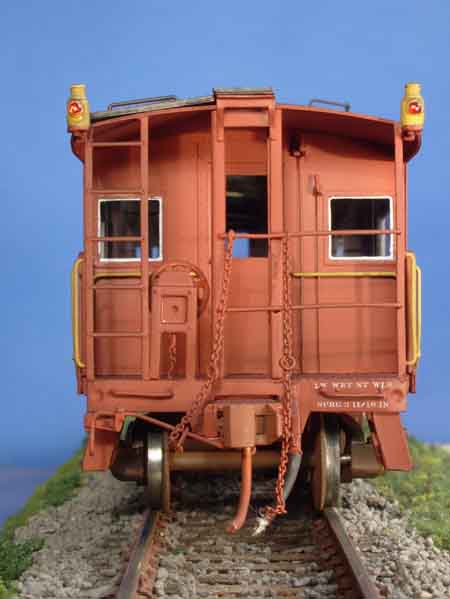

End Markers

PRR_N8_End small





Updated 12-1--12
